Use Edge Insights to gain historical and near real-time insights into threat profiles, performance, and CDN usage. It allows you to:
Generate a report for security violations and CDN usage.
Visualize where and how your content is being requested.
Troubleshoot issues by analyzing security violations and delivery profiles for problematic traffic.
Export data as a JSON file.
The primary function of these reports is to identify threat profiles, assess performance, and gather data on CDN usage. This data should not be used for billing purposes.
Generating a report consists of performing the following steps:
Navigate to the Edge Insights page.
From the Edgecast Console, select the desired private space or organization.
Select the desired property.
From the left-hand pane, select the desired environment from under the Environments section.
From the left-hand pane, select Edge Insights.
Select one of the following data sources:
Access Logs: Use this data source to analyze CDN traffic for up to the last 6 hours.
Bot Manager Alerts: Use this data source to view bot manager rule violations for up to the last 7 days.
Edge Control: Use this data source to analyze how recent CDN deployments affects content delivery and performance.
Downsampled Access Logs: Use this data source to analyze CDN traffic, downsampled to 0.1%, for up to the last 7 days.
Rate Limiting Alerts: Use this data source to view traffic that exceeded your rate limit(s), downsampled to 10%, for up to the last 30 days.
WAF Alerts: Use this data source to view access rule, custom rule, and managed rule violations of your Security Application configurations for up to the last 30 days.
RUM Logs: Use this data source to view Core Web Vitals (CWV) data that were tracked through our Real User Monitoring (RUM) library. This log data is available for up to the last 7 days.
Edge Function Logs: Use this data source to view log messages for edge functions that were computed within the last 7 days. Log messages through the log() method (e.g., console.log("My message")).
Internal Logs (FE): Reserved for internal use.
Cloud Functions Logs: Use this data source to view Cloud Functions log data for up to the last 24 hours.
Security Logs: Use this data source to view access rule, rate limiting, bot manager, custom rule, and managed rule violations of your Security Application configurations for up to the last 7 days.
Select the time period for which data will be returned.
Define a time period that does not exceed the retention period defined for the selected data source.
Optional. Define a filter for your report to gain deeper insights into security violations, key fields, or traffic patterns.
Edge Control Only: Define the configurations that will be compared and the type of data that will be analyzed.
From the Customer config version section, select two or more configurations.
Select the data that will be compared from the HTTP Status Code and Cache Status sections.
For example, you may select TCP_MISS from the Cache Status section to compare whether cache misses increased as a result of your latest configuration update.
The following common use cases are provided to demonstrate various ways in which you may use Edge Insights to gain insight into traffic patterns or to troubleshoot issues.
From the Data Source option, select Access Logs (Full - last 6 hours).
From the Time Period option, define the desired time period.
For example, if the software update was made available on a Monday at 3 p.m., then you would set the starting point to that date and time. By default, the ending point is automatically set to a recent timestamp and therefore allows you to view all available data from the starting point to the present.
Create a filter for the software update’s URL.
Click on + Add Filter.
Select URL Path.
Set it to the URL path for the desired software update package.
Specific URL Path Example: The following value filters for a specific URL:
/downloads/widgets.zip
Recursive Example: The following value filters for all requests with the same base URL:
regex:/downloads/.*
Click Save.
From the Top Results section, select the Country Name field.
From the pie chart, click on United States.
From the Top Results section, select the HTTP Status Code field.
Review the status codes.
Optional. Dig into a specific status code by clicking on it and then reviewing log entries from the Logs section.
Specific Data: Click on the icon next to the data that you would like to share. Edgecast will load the corresponding JSON data in a new window or tab. You should then either:
Share the JSON data with the desired individual(s).
Share the data’s URL with another Edgecast team member.
You must establish an Edgecast session before attempting to load an Edgecast URL that points to a specific report or data. Attempting to load this type of URL without an active Edgecast session may load the Edgecast’s home page instead.
The time chart (aka line graph) graphs the current report’s data over time.
Key information:
By default, a single line plots all requests over time. Graph the top results for a specific field by clicking on the button that corresponds to that field. If the desired field is not listed, select it from within the Top Results section.
By default, a line graph includes up to the 10 most popular entries. Customize this limit through the Limit Results to Top option from the left-hand pane. This option also affects the maximum number of unique entries that may be listed within a Top Result chart.

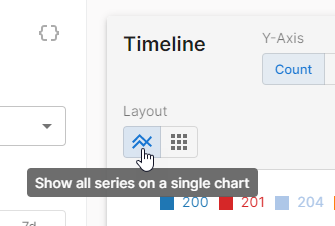

Use the layout options to determine whether all data will be plotted on a single or multiple line charts.
Single Line Chart: By default, all data is plotted within a single chart with individual lines for each entry. Switch from multiple line charts to a single line chart by clicking the icon.
Click on the color-coded entries within the legend to hide or show them.
Multiple Line Charts: Generate a line graph for each entry by clicking the icon.
Hovering over the line graph will indicate the exact number of requests that were plotted for that time slot.
By default, Edge Insights plots data using an optimal time interval for the report’s time range. You may override this by switching the resolution from Auto to the desired time interval.
The report’s time range determines the set of available resolutions.
View the data used to plot this chart by clicking on the icon. Upon clicking this icon, Edgecast displays this data in JSON format within a new tab.
The top results charts displays the top results for 2 fields.
Key information:
By default, each chart may include up to the 10 most popular entries. Customize this limit through the Limit Results to Top option from the left-hand pane. This option also affects the maximum number of unique entries that may be graphed within the time chart.
The Top Results charts only include statistically significant entries. A gray slice called Rest... represents all remaining traffic.
Certain fields may generate a pie chart that solely consists of a Rest... slice. This behavior typically indicates either that there are many unique entries or that this field is not applicable to the majority of requests.
Example:
In the following illustration, the Client Postal Code pie chart returns a single slice called Rest.... The traffic represented by this pie chart is distributed throughout the world and therefore no single postal code was responsible for a statistically significant traffic segment. The Client Region Name pie chart, on the other hand, displays the top 10 regions. Those regions were responsible for majority of traffic included in this report.
Increasing the Limit Results to Top option to 30 provides visibility into additional POPs that were responsible for serving the majority of your traffic. Notice in the following illustration that the Rest... slice is now smaller since the pie chart now reports data for regions that were previously included by that slice.
You may switch a chart’s field by selecting a new one directly underneath the chart. The available set of fields vary by data source.
The fields selected in the Top Results section determine the available set of sources within the time chart.
Filter the entire report by clicking on a value within the chart.
Filters persist until they are manually removed from the Filters section in the left-hand pane. This allows you to quickly filter on multiple fields. Apply an additional filter by switching to another field and then clicking on the desired entry.
Optional. Click on = to toggle between filtering for requests that:
=: Match the specified value.
≠: Do not match the specified value.
Example:
Filter for requests that do not originate from a specific country by selecting the Country Name field, toggling this symbol to ≠, and then defining the name of the desired country.
Set the value through which the report will be filtered.
Advanced (Regular Expressions): If you are filtering by a field that reports a string value, then you may define a regular expression through the following syntax: regex:<REGULAR EXPRESSION>
Example:
Use this regular expression on the Country Name field to filter for requests that originated in United States, Canada, or Mexico:
Log data, which is reported within the Logs section, provides contextual information about a request that allows you to gain deeper behavioral insight into threat detection and CDN usage.
Key information:
Log entries are returned as paginated results. By default, we provide 10 log entries per page. You may increase this value up to 1,000 through the Logs per page option.
View a specific log entry by clicking on it.
View the current page’s log data by clicking on the icon. Upon clicking this icon, Edge Insights opens a new tab that contains a JSON object that represents the current page’s log data.
Edge Insights restricts log retrieval to 10,000 log entries. If the current report consists of more log entries, then you may only retrieve log data for 10,000 of the most recent requests. This limit solely applies to log retrieval. Your report’s time chart and Top Results charts display all available data without regard to this limit.
Edge Insights is not meant to be used as a log retrieval or log archival tool. Use Real-Time Log Delivery to automatically archive log data to one or more destinations.
Indicates the algorithms used to generate and encrypt a hash for this TLS request.
Example:RSA-SHA256
Client City Name
Indicates the city from which the request originated.
Client Content Type
Indicates the media type (aka content type) for the requested content.
Example:application/javascript
Client Continent Code
Indicates the continent from which the request originated using one of the following codes:
AF: Africa
AS: Asia
EU: Europe
NA: North America
OC: Oceania
SA: South and Central America
Empty String: Unknown continent
Client Country Code
Identifies the country from which the request originated by its country code.
Client HTTP Request Protocol
Indicates the request’s HTTP version.
Example:HTTP_2_0
Client IP Address
Identifies the IP address of the client from which the request originated.
Client ISP
Indicates the client’s ISP.
Client Latitude
Indicates the approximate latitude of the postal code, city, subdivision, or country associated with the client’s IP address. A null value is reported when the client’s latitude cannot be determined.
Client Longitude
Indicates the approximate longitude of the postal code, city, subdivision, or country associated with the client’s IP address. A null value is reported when the client’s longitude cannot be determined.
Client Postal Code
Reserved for future use.
Client Region Name
Indicates the name of the region from which the request originated.
Example:Sao Paulo
Client SSL Ciphers
Indicates the set of cipher suites supported by the client that submitted the request.
Client VIP
Reserved for future use.
Connection ID
Reserved for future use.
Country Name
Identifies the country from which the request originated by its name.
Crypt Id
Reserved for future use.
Customer config version
Identifies the version of the CDN configuration that was in effect when this request was processed. Updating your CDN configuration increments your CDN configuration version.
Customer Id
Identifies the environment through which this request was served through its system-defined account number (decimal).
Direct Response
Reserved for future use.
EC Tag
Reserved for future use.
Edge Function Count
Indicates the number of times that the edge function has been invoked.
Edge Function Customer Metric #
Indicates the value associated with a metric measured within an edge function by context.metrics.
Edge Function Memory Reserved Bytes
Indicates the amount of memory, in bytes, that have been reserved for this edge function. Runtime memory encompasses all variables, HTTP requests and responses, as well as the context object.
Edge Function Name
Identifies the edge function by value assigned to the edge_function property.
Edge Function Sync Time
Indicates the edge function’s CPU time in microseconds.
Edge Function Total Time
Indicates the total time, in microseconds, that this edge function ran.
Edge Function Wait Time
Indicates the amount of time, in microseconds, that this edge function waited for asynchronous events (e.g., waiting for a response).
Edge Server IP Address
Indicates the IP address for the edge server that processed the request.
Edge Server Port
Identifies the port on the edge server that received the request.
Environment ID
Identifies the environment through which this request was served through its system-defined ID.
Epoch Time
Indicates the timestamp, in Unix time (seconds), at which our CDN received the request.
Event ID
Indicates the unique ID assigned to this request.
File extension
Indicates the request’s file extension.
Example:.js
File size
Indicates the size, in bytes, of the requested asset (i.e., response body).
Geographical Time Zone
Indicates the name of the time zone that corresponds to the region from which the request originated.
Example:America/Sao_Paulo
Geoip Region Code
Identifies the client’s region by its system-defined ID.
Host Header (Edge CNAME)
Indicates the Host header value sent in the client’s request to the CDN.
Hot Hash
Reserved for future use.
Hot Servers
Reserved for future use.
HTTP Method
Indicates the request’s HTTP method.
Example:HTTP_METHOD_GET
HTTP Status Code
Indicates the response’s HTTP status message.
Example:HTTP_STATUS_OK
Id
Reserved for future use.
Index
Reserved for internal use.
Ingest Timestamp
Indicates the timestamp, in Unix time (seconds), at which our CDN received the request.
IP Version
Indicates the client’s IP version number. Valid values are: `4
JA3 MD5 Hash
Indicates the JA3 fingerprint assigned to the request. A JA3 fingerprint identifies a client using key characteristics from a TLS request.
LC
Reserved for future use.
Origin Name
Indicates the name of the origin configuration that corresponds to this request.
Partner ID
Indicates the system-defined ID of the partner that owns this account.
Pipeline Time
Indicates the number of seconds between when the request was received by our network and ingestion.
Platform
Returns cache.
POP
Identifies the POP that handled the client’s request by its three-letter abbreviation.
Proxy ASN
Indicates the ASN through which the request was proxied.
Proxy Hard Error
Indicates the error message that occurred when proxying the request.
Example: The following sample value indicates that an error did not occur when proxying the request: HARD_ERR_NONE
Proxy IP Address
Indicates the IP address to which the request was proxied.
Proxy IP Protocol Version
Indicates the IP protocol version (i.e., IPv4 or IPv6) to which the request was proxied.
Proxy Port
Indicates the port to which the request was proxied.
Proxy Timing Finished To End
Reserved for future use.
Proxy Type
Indicates whether the request was proxied to an ORIGIN or MIDGRESS (e.g., Origin Shield). Returns NONE if the request was not proxied.
Query String
Indicates the request’s query string.
Range
Indicates the requested range of bytes as defined by the Range request header.
Example:bytes=0-12022
Real Remote Host
Reserved for future use.
Receiving Host
Identifies the host that received the request.
Referrer
Indicates the request’s referrer as defined by the Referer request header.
Requests
Reserved for future use.
Response Body Bytes Out
Indicates the number of bytes in the payload sent from the edge server to the client. Returns 0 for blocked requests. See Bytes Out to find out the size of the entire response.
Rewritten URL Path
Indicates the request’s URL as submitted by the client.
Server Name
Indicates the name of the edge server that processed the request.
Session ID
Reserved for future use. See the Event ID log field to find out a request’s ID.
Site ID
Indicates system-defined ID for the property associated with this request.
SSL Cipher Name
Indicates the cipher suite used in the handshake between the client that submitted the request and one of our servers.
Example:TLS_AES_256_GCM_SHA384
SSL Client Signature Algorithms
Indicates the set of TLS signature algorithms supported by the client that submitted the request.
SSL Protocol
Indicates the TLS protocol version used for the communication between the client and our network.
Example:TLSv1.3
TCP Congestion Algorithm
Indicates the network congestion avoidance algorithm for TCP used to process the request.
Example:cubic
Team ID
Indicates the system-defined ID for the organization or private space associated with this request.
Throughput
Reserved for future use.
Timestamp
Indicates the timestamp at which our servers received the request.
Syntax:YYYY-MM-DDThh:mm:ss:ffZ
Example:2022-11-14T18:36:11Z
Total Time
Indicates the length of time, in seconds, that it took to send a response to the client. This metric measures the duration between when an edge server receives a request and when it finishes sending the response to the client. This field does not take into account network time.
Example:0.000582
Traffic Type
Reserved for future use.
URI
Indicates the request’s URL path and query string after the URL Rewrite feature has been applied to it. This URL path starts directly after the hostname and it excludes the protocol and hostname.
Example: This example assumes that the client submitted the following request: https://cdn.example.com/script.js Our service logs the following value for this field: /resources/script.js
URL Path
Indicates the request’s URL path and query string as submitted by the client. This URL path starts directly after the hostname and it excludes the protocol and hostname.
Example: This example assumes that the client submitted the following request: https://cdn.example.com/script.js Our service logs the following value for this field: /resources/script.js
User Agent
Indicates the user agent that submitted the request. This information is derived from the User-Agent request header.
Wholesaler ID
Indicates the wholesaler’s system-defined ID.
Write Time
Indicates the length of time, in seconds, that it took an edge server to write the response. This metric measures the duration between when an edge server starts writing the response and when it finishes sending the response to the client. Our servers forward data as it is read. This means that the read_time and write_time reported for an asset spans over an overlapping time period. This field does not take into account network time.
Example:2.9999e-05
X Midgress
Indicates whether the request was proxied through an additional CDN server (e.g., edge server to Origin Shield server). This field reports __na__ for requests that did not have midgress traffic.
X-Forwarded-For
Indicates the client’s IP address as determined by the X-Forwarded-For request header.
Use this data source to analyze CDN traffic that has been downsampled to 0.1%. This data provides historical and near real-time visibility into your CDN traffic at a high-level.
Calculate an approximation of your actual total events by multiplying your total events by 1,000. For example, if your total events reports 100K, then the approximate number of requests for that time period is 100,000,000.
Each Downsampled Access Logs field is defined below.
Field
Description
ASN
Indicates the autonomous system number (ASN) for the autonomous system (AS) from which the request originated.
Bytes In
Indicates the sum of the number of bytes read from both the requesting client and the origin server. Returns 0 for blocked requests.
Bytes Out
Indicates the number of bytes in the response sent from the edge server to the client. Returns 0 for blocked requests.
Bytes Out without Header
Indicates the number of bytes in the payload sent from the edge server to the client. Returns 0 for blocked requests.
Cache Status
Indicates the cache status code that was generated by the request. This code indicates how the request was handled by the CDN with regards to caching.
Chosen SSL Signature Algorithm
Indicates the algorithms used to generate and encrypt a hash for this TLS request.
Example:RSA-SHA256
City Name
Indicates the city from which the request originated.
Client Content Type
Indicates the media type (aka content type) for the requested content.
Example:application/javascript
Client IP
Identifies the IP address of the client from which the request originated.
Client SSL Ciphers
Indicates the set of cipher suites supported by the client that submitted the request.
Client VIP
Reserved for future use.
Common Header
Reserved for future use.
Connection ID
Reserved for future use.
Content Range
Indicates the location of a ranged request’s payload within the full message. This information is defined within the Content-Range header.
Example:bytes 0-4095/8388608
Content Type
Indicates the media type (aka content type) for the requested content.
Example:application/javascript
Continent Code
Indicates the continent from which the request originated using one of the following codes:
AF: Africa
AS: Asia
EU: Europe
NA: North America
OC: Oceania
SA: South and Central America
Empty String: Unknown continent
Country Code
Identifies the country from which the request originated by its country code.
Country Name
Identifies the country from which the request originated by its name.
Customer config version
Identifies the version of the CDN configuration that was in effect when this request was processed. Updating your CDN configuration increments your CDN configuration version.
Direct Response
Reserved for future use.
EC Tag
Reserved for future use.
Epoch Time
Indicates the timestamp, in Unix time (seconds), at which our CDN received the request.
Event ID
Indicates the unique ID assigned to this request.
File extension
Indicates the request’s file extension.
Example:.js
File size
Indicates the size, in bytes, of the requested asset (i.e., response body).
Forwarded for IP
Indicates the requester’s IP address.
Geographical Latitude
Indicates the approximate latitude of the postal code, city, subdivision, or country associated with the client’s IP address. A null value is reported when the client’s latitude cannot be determined.
Geographical Longitude
Indicates the approximate longitude of the postal code, city, subdivision, or country associated with the client’s IP address. A null value is reported when the client’s longitude cannot be determined.
Geographical Postal Code
Reserved for future use.
Geographical Real Region Name
Reserved for future use.
Geographical Region Name
Indicates the name of the region from which the request originated.
Example:Sao Paulo
Geographical Time Zone
Indicates the name of the time zone that corresponds to the region from which the request originated.
Example:America/Sao_Paulo
File size
Indicates the size, in bytes, of the requested asset (i.e., response body).
HTTP Status
Indicates the HTTP status message for the response generated by an origin server, an Origin Shield server, or an edge server.
Example:HTTP_STATUS_OK
HTTP Status Code
Indicates the HTTP status code for the response generated by an origin server, an Origin Shield server, an ADN Gateway server, or an edge server.
Example:200
IP Version
Indicates the client’s IP version number. Valid values are: `4
LC
Reserved for future use.
Origin URL
Indicates the request’s URL path and query string. This URL path starts directly after the content access point. It excludes the protocol, hostname, and content access point.
Example:/resources/script.js
Pipeline Time
Indicates the number of seconds between when the request was received by our network and ingestion.
Platform
Returns cache.
POP
Identifies the POP that handled the client’s request by its three-letter abbreviation.
Proxy Address
Indicates the IP address to which the request was proxied.
Proxy ASN
Indicates the ASN through which the request was proxied.
Proxy hard error
Indicates the error message that occurred when proxying the request.
Example: The following sample value indicates that an error did not occur when proxying the request: HARD_ERR_NONE
Proxy Port
Indicates the port to which the request was proxied.
Proxy Version
Reserved for future use.
Query String
Indicates the request’s query string.
QUIC version
Indicates the request’s QUIC version.
Range
Indicates the requested range of bytes as defined by the Range request header.
Example:bytes=0-12022
Receiving Host
Identifies the host that received the request.
Referer
Indicates the request’s referrer as defined by the Referer request header.
Request Count
Reserved for future use.
Request ID
Indicates the unique ID assigned to this request.
Request Method
Indicates the request’s HTTP method.
Example:HTTP_METHOD_GET
Request Protocol
Indicates the request’s HTTP version.
Example:HTTP_2_0
Server Address
Indicates the IP address for the edge server that processed the request.
Server Name
Indicates the name of the edge server that processed the request.
Server Port
Indicates the port number on an edge server to which the client directed a request. Valid values are:
80: HTTP request
443: HTTPS request
SSL Cipher Name
Indicates the cipher suite used in the handshake between the client that submitted the request and one of our servers.
Example:TLS_AES_256_GCM_SHA384
SSL Client Cipher Name
Reserved for future use.
SSL Client Signature Algorithms
Indicates the set of TLS signature algorithms supported by the client that submitted the request.
SSL Protocol
Indicates the TLS protocol version used for the communication between the client and our network.
Example:TLSv1.3
TCP Congestion Algorithm
Indicates the network congestion avoidance algorithm for TCP used to process the request.
Example:cubic
Throughput
Reserved for future use.
Timestamp
Indicates the timestamp at which our CDN received the request.
Syntax:YYYY-MM-DDThh:mm:ss:ffZ
Example:2022-11-14T18:36:11Z
Total Connection Time
Indicates the length of time, in seconds, that it took to send a response to the client. This metric measures the duration between when an edge server receives a request and when it finishes sending the response to the client. This field does not take into account network time.
Example:0.000582
URI
Indicates the request’s URL path and query string. This URL path starts directly after the hostname and it excludes the protocol and hostname.
Example: This example assumes that the client submitted the following request: https://cdn.example.com/script.js Our service logs the following value for this field: /resources/script.js
Indicates the user agent that submitted the request. This information is derived from the User-Agent request header.
Write Time Used
Indicates the length of time, in seconds, that it took an edge server to write the response. This metric measures the duration between when an edge server starts writing the response and when it finishes sending the response to the client. Our servers forward data as it is read. This means that the read_time and write_time reported for an asset spans over an overlapping time period. This field does not take into account network time.
Example:2.9999e-05
X Midgress
Indicates whether the request was proxied through an additional CDN server (e.g., edge server to Origin Shield server). This field reports __na__ for requests that did not have midgress traffic.
Use the Rate Limiting Alerts data source for historical and near real-time analysis of recently rate limited requests. For example, use this data to:
Understand the severity of rate limited requests.
Identify the countries from which rate limited traffic originated.
Identify key individual offenders by their IP address.
View detailed information that describes a rate limited request.
Logging for rate limited requests is downsampled to 10% due to the volume of requests that may occur during a single incident (e.g., volumetric Distributed Denial-of-Service attack).
Calculate an approximation of your actual total events by multiplying your total events by 10. For example, if your total events reports 325K, then the approximate number of requests for that time period is 3,250,000.
Edge Insights retains WAF data, including rate limited requests, for 30 days.
Each Rate Limiting field is defined below.
Fields
Description
Account Type
Reserved for future use.
Bytes In
Indicates the sum of the number of bytes read from both requesting client and the origin server. Returns 0 for blocked requests.
Bytes Out
Indicates the number of bytes in the response sent from the edge server to the client. Returns 0 for blocked requests.
Cache Status
Indicates the cache status code that was generated by the request. This code indicates how the request was handled by the CDN with regards to caching.
City Name
Indicates the city from which the request originated.
Client IP
Identifies the IP address of the client from which the request originated.
Common Header
Reserved for future use.
Content Type
Reserved for future use.
Country Code
Identifies the country from which the request originated by its country code.
Country Name
Identifies the country from which the request originated by its name.
Epoch Time
Indicates the timestamp, in Unix time (seconds), at which our CDN received the request.
File extension
Indicates the request’s file extension.
Host
Indicates the Host header value sent in the client’s request to the CDN.
id
Reserved for future use.
LC
Reserved for future use.
POP
Identifies the POP that handled the client’s request by its three-letter abbreviation.
Rate Limiting Action Duration
Indicates the number of seconds for which the rate limit that this request violated was enforced.
Rate Limiting Action Limit ID
Indicates the ID of the rate rule that the request violated.
Rate Limiting Action Limit Name
Indicates the name of the rate rule that the request violated.
Rate Limiting Action Percentage
Reserved for future use.
Rate Limiting Action Start Epoch msec
Indicates when the rate limiting action was applied to the request. The date and time is reported in Unix time (a.k.a. POSIX time or Unix epoch). Time is reported in milliseconds instead of seconds. Please convert this value from milliseconds to seconds prior to leveraging it with Unix time functions.
Rate Limiting Action Type
Indicates the type of action that was applied to the request. Valid values are:
ALERT: Alert Only
REDIRECT_302: Redirect (HTTP 302)
CUSTOM_RESPONSE: Custom Response
DROP_REQUEST: Drop Request (503 Service Unavailable response with a retry-after of 10 seconds)
Rate Limiting Action URL
Indicates the URL to which the request was redirected.
Rate Limiting Enforcement Duration
Indicates the minimum length of time, in seconds, that eligible requests were rate limited when the event took place.
Example: This example assumes that a duration of 280 seconds was reported for an event. This means that the rule’s rate limiting policy was enforced for a minimum of 4 minutes and 40 seconds. The actual duration of the enforcement period was determined by the length of time that requests exceeded the rule’s threshold.
Rate Limiting Enforcement Percentage
Indicates the percentage of eligible requests that were rate limited when the event took place.
Example: A percentage of 20% indicates that 20% of eligible requests were rate limited when the event took place. In other words, if there are 1000 eligible requests per minute, then a predefined action (e.g., URL redirection) was applied to 200 requests.
Rate Limiting Enforcement Rule ID
Indicates the action that was applied to the rate limited request by its system-defined ID.
Rate Limiting Enforcement Start Epoch msec
Indicates when the rate limiting action was applied to the request. The date and time is reported in Unix time (a.k.a. POSIX time or Unix epoch). Time is reported in milliseconds instead of seconds. Please convert this value from milliseconds to seconds prior to leveraging it with Unix time functions.
Rate Limiting Enforcement Tuple ID
Indicates the ID of the rate rule that the request violated.
Rate Limiting Enforcement Tuple Name
Indicates the name of the rate rule that the request violated.
Rate Limiting Enforcement Type
Indicates the type of action that was applied to the rate limited request.
Rate Limiting Enforcement URL
Indicates the URL to which the request was redirected.
Referer
Indicates the request’s referrer as defined by the Referer request header.
Request Method
Indicates the request’s HTTP method.
Example:HTTP_METHOD_GET
Scope ID
Identifies the system-defined ID of the Security Application Manager configuration that the request violated.
Scope Name
Identifies the name of the Security Application Manager configuration that the request violated.
Server Address
Indicates the IP address for the edge server that processed the request.
Server Name
Indicates the name of the edge server that processed the request.
Server Port
Indicates the port number on an edge server to which the client directed a request. Valid values are:
80: HTTP request
443: HTTPS request
Server Type
Indicates the type of server that handled the request.
URI
Indicates the request’s URL path and query string. This URL path starts directly after the hostname and it excludes the protocol and hostname.
URL
Indicates the URL of the request that triggered the rule violation.
User Agent
Indicates the user agent that submitted the request. This value is derived from the request’s User-Agent header.
Use the WAF Alerts data source for historical and near real-time analysis of recent threats to site traffic. For example, use this data to:
Visualize the time periods during which site traffic is most heavily targeted.
Understand the variety, frequency, and severity of illegitimate traffic.
Identify the countries from which illegitimate traffic originates.
Identify key individual offenders by their IP address.
Learn detailed information on the types of attack being mounted against your site.
Each WAF field is defined below.
Field
Description
Account Type
Reserved for future use.
Acl ID
Indicates the system-defined ID of the access rule that the request violated.
Acl Name
Indicates the name of the access rule that the request violated.
Action Type
Indicates the type of action that was taken in response to the rule violation. Valid values are:
BLOCK_REQUEST: Indicates that the request that violated a rule was blocked.
ALERT: Indicates that an alert was generated in response to the rule violation.
REDIRECT_302: Indicates that the request that violated a rule was redirected to the URL associated with the instance defined by the Instance Name field.
CUSTOM_RESPONSE: Indicates that a custom response was returned to the client that submitted a request that violated a rule.
ASN
Indicates the autonomous system number (ASN) for the autonomous system (AS) from which the request originated.
Bytes In
Indicates the sum of the number of bytes read from both the requesting client and the origin server. Returns 0 for blocked requests.
Bytes Out
Indicates the number of bytes in the response sent from the edge server to the client. Returns 0 for blocked requests.
Cache Status
Indicates the cache status code that was generated by the request. This code indicates how the request was handled by the CDN with regards to caching.
City Name
Indicates the city from which the request originated.
Client Content Type
This field has been deprecated. Use the Content Type field instead.
Client IP
Identifies the IP address of the client from which the request originated.
Content Type
Indicates the media type (aka content type) for the requested content.
Example:application/javascript
Country Code
Identifies the country from which the request originated by its country code.
Country Name
Identifies the country from which the request originated by its name.
Epoch Time
Indicates the timestamp, in Unix time (seconds), at which our CDN received the request.
Event ID
Indicates the unique ID assigned to the event. Pass this ID to the Get Event Log Entry endpoint to retrieve this event log entry.
File size
Indicates the size, in bytes, of the requested asset (i.e., response body).
Host
Indicates the Host header value sent in the client’s request to the CDN.
id
Reserved for future use.
Instance ID
Reserved for future use.
Instance Name
Reserved for future use.
IP Version
Reserved for future use.
LC
Reserved for future use.
Matched On
Indicates a variable that identifies where the violation was found.
Matched Value
Indicates the value of the variable defined by the Matched On field. Standard security practices dictate that measures should be taken to prevent sensitive data (e.g., credit card information or passwords) from being passed as clear text from the client to your origin server. Another incentive for encrypting sensitive data is that it will be logged by our system when an alert is triggered as a result of this data. If sensitive data cannot be encrypted or obfuscated, then it is strongly recommended to contact our technical customer support to disable logging for the Matched Value field.
Operator Name
Indicates how the system interpreted the comparison between the Operator Parameter and the Matched Value fields. Common operators are:
BEGINSWITH: Begins with. Identifies a match due to a request element that started with the specified match value.
CONTAINS: Contains. Identifies a match due to a request element that contained the specified match value.
ENDSWITH: Ends with. Identifies a match due to a request element that ended with the specified match value.
STREQ: Exact match. Identifies a match due to a request element that was an exact match to the specified match value.
RX: Regex. Identifies a match due to a request element that satisfied the regular expression defined in the match value.
EQ: Value match. Identifies a match due to a request element that occurred the exact number of times defined in your custom rule.
IPMATCH: IP Address. Identifies a match due to the request’s IP address either being contained within an IP block or that was an exact match to an IP address defined in your custom rule.
Operator Parameter
Indicates the source or the value that was compared against the Matched Value field.
Pipeline Time
Indicates the number of seconds between when the request was received by our network and ingestion.
Platform
Returns cache.
POP
Identifies the POP that handled the client’s request by its three-letter abbreviation.
Profile ID
Indicates the system-defined ID of the managed rule that the request violated.
Profile Name
Indicates the name of the managed rule that the request violated.
Profile Type
Indicates whether the request was screened as a result of a production or audit rule.
Receiving Host
Indicates the name of the server that inspected the request.
Referer
Indicates the request’s referrer as defined by the Referer request header.
Request Method
Indicates the request’s HTTP method.
Example:HTTP_METHOD_GET
Rule ID
Indicates the ID for the rule that the request violated. This field indicates that the rule met or exceeded the maximum anomaly score. Please refer to the Sub Event(s) section, which contains a sub event for each rule violated by a request, to find out why the request was flagged or blocked. Each sub event indicates the rule that was violated and the data used to identify the violation.
Rule Message
Provides a description of the rule that the request violated.
Syntax:Inbound Anomaly Score Exceeded (Total Score: 3, SQLi=0, XSS=0): Last Matched Message: Rule Message This term represents the message for the last rule that the request violated. This field indicates the request’s anomaly score and the last rule that it violated. Refer to the Sub Event(s) section, which contains a sub event for each rule violated by a request, to find out why the request was flagged or blocked. Each sub event indicates the rule that was violated and the data used to identify the violation.
Rule Tags
Indicates the tags associated with the rule that the request violated. These tags may be used to determine whether a rule, access control, or global setting was violated.
Naming convention:Rule Set/Category/Subcategory A category identifies whether the request violated a rule, an access control, or the delivery profile. The following sample values identify a policy: OWASP_CRS/PROTOCOL_VIOLATION/INVALID_HREQ and OWASP_CRS/WEB_ATTACK/SQL_INJECTION The following sample values identify a blacklist criterion: BLACKLIST/IP, BLACKLIST/COUNTRY, BLACKLIST/REFERRER, and BLACKLIST/URL The following sample value identifies a setting: OWASP_CRS/POLICY/SIZE_LIMIT
Rules Config ID
Indicates the ID of the custom rule that the request violated.
Rules Config Name
Indicates the name of the custom rule that the request violated.
Scope ID
Indicates the system-defined ID of the Security Application Manager configuration that the request violated.
Scope Name
Indicates the name of the Security Application Manager configuration that the request violated.
Server Address
Indicates the IP address for the edge server that processed the request.
Server Name
Indicates the name of the edge server that processed the request.
Server Port
Indicates the port number on an edge server to which the client directed a request. Valid values are:
80: HTTP request
443: HTTPS request
Sub Event Count
Indicates the number of rules that the request violated.
Sub Events
Reserved for future use.
Total Anomaly Score
Indicates the anomaly score assigned to the request. This score is determined by the number of rules that were violated and their severity.
URL
Indicates the URL of the request that triggered the rule violation.
User Agent
Indicates the user agent that submitted the request that triggered the rule violation. This information is derived from the User-Agent request header.
Use the Edge Function Logs data source to view log messages for edge functions that were computed within the last 7 days. Log messages through the log() method (e.g., console.log("My message")).
Use the Security Logs data source for historical and near real-time analysis for access rule, rate limiting, bot manager, custom rule, and managed rule violations of your Security Application configurations.
By default, a line graph includes up to the 10 most popular entries. Customize this limit through the Limit Results to Top option from the left-hand pane. This option also affects the maximum number of unique entries that may be listed within a Top Result chart.Use the layout options to determine whether all data will be plotted on a single or multiple line charts.
Increasing the Limit Results to Top option to 30 provides visibility into additional POPs that were responsible for serving the majority of your traffic. Notice in the following illustration that the
